Modular Aluminum Stage Truss System for Events and Concerts
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Shizhan |
| Model Number | Aluminum Truss-RT |
| Minimum Order Quantity | 100 |
| Price | US$52-55 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connection Type | Pin Connection | Shape | Rectangle, Square, Triangle, Round Or Customized |
|---|---|---|---|
| Frame Design | Modular | Length | 1.0-4.0m |
| Material | Aluminum Alloy | Load-bearing Capacity | 1000kg |
| Unit Length | 0.5m,1m,2m,3m,4m,5m Or Customized | Truss Section Shape | Square Or Round |
| Truss Tube Thickness | 1.5/2/3MM | Truss Tube Diameter | 20mm,32mm,50mm |
| Hardness | 16 Degree | Main Tube Thickness | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| Vice Tube Thickness | 18*2mm; 20*2.5mm; 25*2.5mm | Brace Tube Thickness | 20*2mm; 25*2mm; 30*2mm |
| Truss Type | Spigot Or Bolt | ||
| Highlight | modular aluminum stage truss,aluminum truss system for concerts,event lighting truss with warranty |
||
Product Description
Aluminum Event Stage Roof Truss System
Product Specifications
| Attribute | Value |
|---|---|
| Connection Type | Pin Connection |
| Feature | Durable |
| Shape | Rectangle, square, Triangle, round or customized |
| Frame design | Modular |
| Product Type | Stage Truss |
| Application | Events, Concert, Music, Performance, DJ Band, Event, Exhibition |
| Length | 1.0-4.0m |
| Material | Aluminum Alloy 6082-T6 |
| Load-bearing Capacity | 1000kg |
| Assembly Method | Quick installation |
| Unit length | 0.5m, 1m, 2m, 3m, 4m, 5m or customized |
| Color | Silver, black or customized |
| Truss section shape | Square or round |
| Truss tube thickness | 1.5/2/3MM |
| Truss tube diameter | 20mm, 32mm, 50mm |
| Hardness | 16 degree |

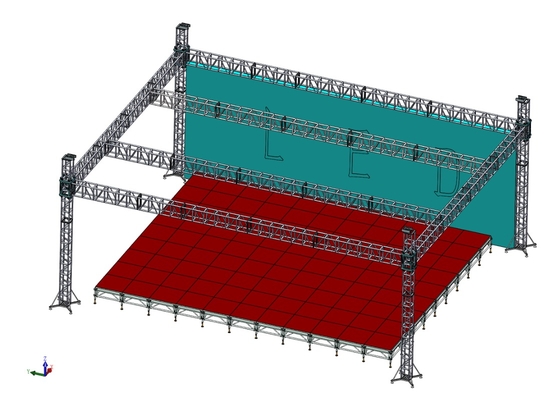

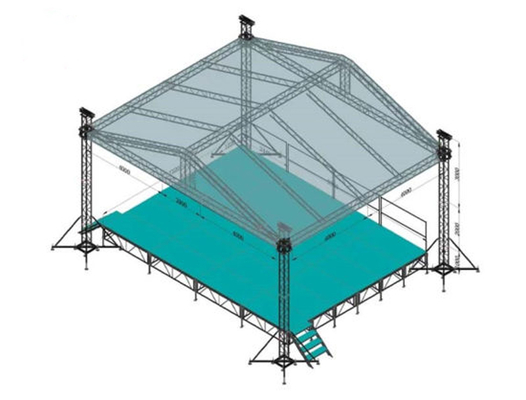

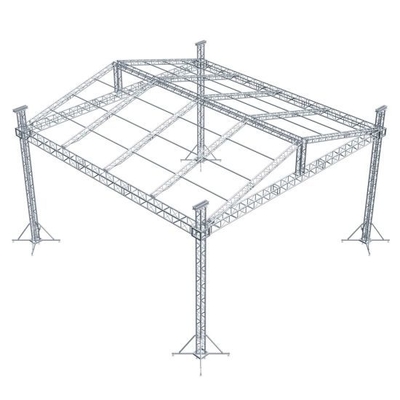

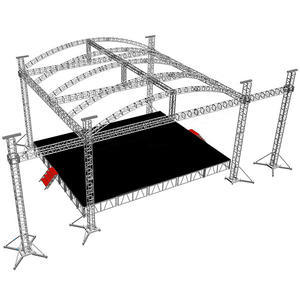

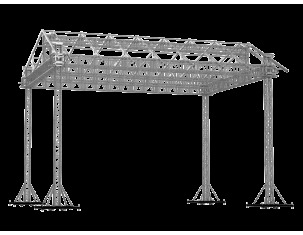

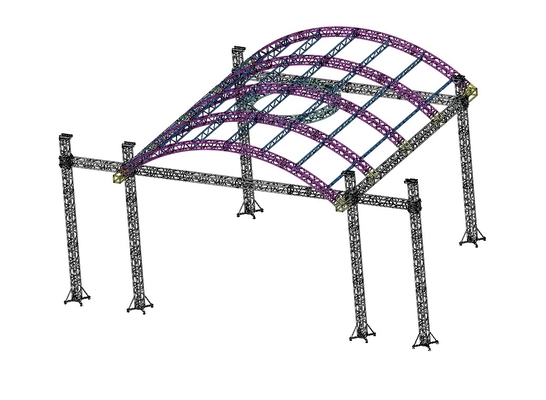

Product Images
Technical Details
| Specification | Details |
|---|---|
| Truss Material | Aluminum alloy 6082-T6 |
| Light duty truss | 200*200mm; 250*250mm |
| Medium duty truss | 290*290mm, 300*300mm; 350*350mm; 300*400mm; 400*400mm; 450*450mm; 400*600mm |
| Heavy duty truss | 520*760mm; 600*760mm; 600*1000mm |
| Main tube thickness | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| Vice tube thickness | 18*2mm; 20*2.5mm; 25*2.5mm |
| Brace tube thickness | 20*2mm; 25*2mm; 30*2mm |
| Length | 0.5m/1m/1.5m/2m...4m or custom size |
| Truss type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle truss |
| Color | Silver or black, blue, green... |
| Usage | Concert, new product release, fashion show, booth stand construction |
| Delivery Time | 10 working days |
Applications
Our aluminum alloy stage truss system is a modular solution made of lightweight aluminum alloy tubes that can be easily assembled and disassembled. It is widely used in various events and applications:
- Concerts and festivals: Build stages for concerts, festivals, and outdoor events with configurable shapes and sizes
- Theatrical productions: Create sets, backdrops, and structures for plays, musicals, and operas
- Exhibitions and trade shows: Construct booths, displays, and exhibition structures
- Corporate events: Build stages and backdrops for product launches, conferences, and award ceremonies
- Sports events: Create race start/finish lines, podiums, and scoreboards
Frequently Asked Questions
Why should I choose your company instead of other suppliers?
- TUV, SGS, CE Certified products
- 15 years experience in truss, stage, barrier and scaffolding
- 35,000 m² workshop with excellent production capacity
- Professional engineering team for perfect project solutions
- Own aluminum profile production line for quality control
- Strict QC process with installation test before delivery
How do I know your quality? Do you support sample orders?
Our products have obtained TUV/SGS/CE/ISO9001 certificates. We can provide samples for quality checking before batch orders.
Which payment methods do you accept?
We accept T/T, Western Union, Trade Assurance, and L/C payments.
What is your product warranty?
Our standard warranty is one year. During this period, we will replace any damaged products free of charge if the damage is not caused by improper use.
Can you do customized designs?
Yes, our professional technical team will provide perfect solutions for your specific project requirements.
