Aluminum Alloy Concert Stage Lighting Truss System
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Shizhan |
| Model Number | Aluminum Truss-RT |
| Minimum Order Quantity | 100 |
| Price | US$44-46 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminum Alloy 6082-T6 | Unit Length | 0.5m,1m,2m,3m,4m,5m Or Customized |
|---|---|---|---|
| Truss Section Shape | Square Or Round | Truss Shape | Square, Triangle, Round Or Customized |
| Truss Tube Thickness | 1.5/2/3MM | Truss Tube Diameter | 20mm,32mm,50mm |
| Hardness | 16 Degree | Light Duty Truss | 200*200mm; 250*250mm |
| Medium Duty Truss | 290*290mm,300*300mm; 350*350mm, 300*400mm, 400*400mm, 450*450mm, 400*600mm | Heavy Duty Truss | 520*760mm; 600*760mm; 600*1000mm |
| Main Tube Thickness | 30*2mm; 50*3mm; 50*4mm; 50*5mm | Vice Tube Thickness | 18*2mm; 20*2.5mm; 25*2.5mm |
| Brace Tube Thickness | 20*2mm; 25*2mm; 30*2mm | Truss Type | Spigot Or Bolt |
| Truss Shape Options | Ladder Truss, Triangular Truss, Square Truss, Arch Truss, Circle Truss | ||
| Highlight | aluminum alloy concert truss system,lighting truss for stage,aluminium truss with warranty |
||
Product Description

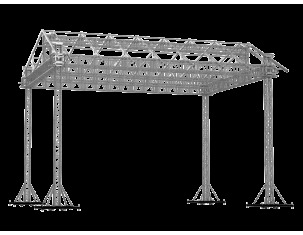

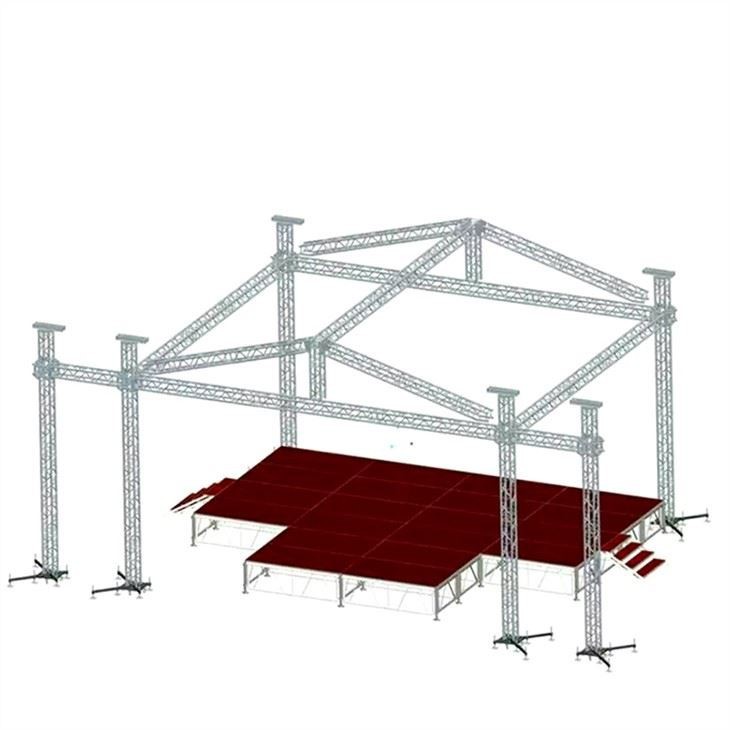

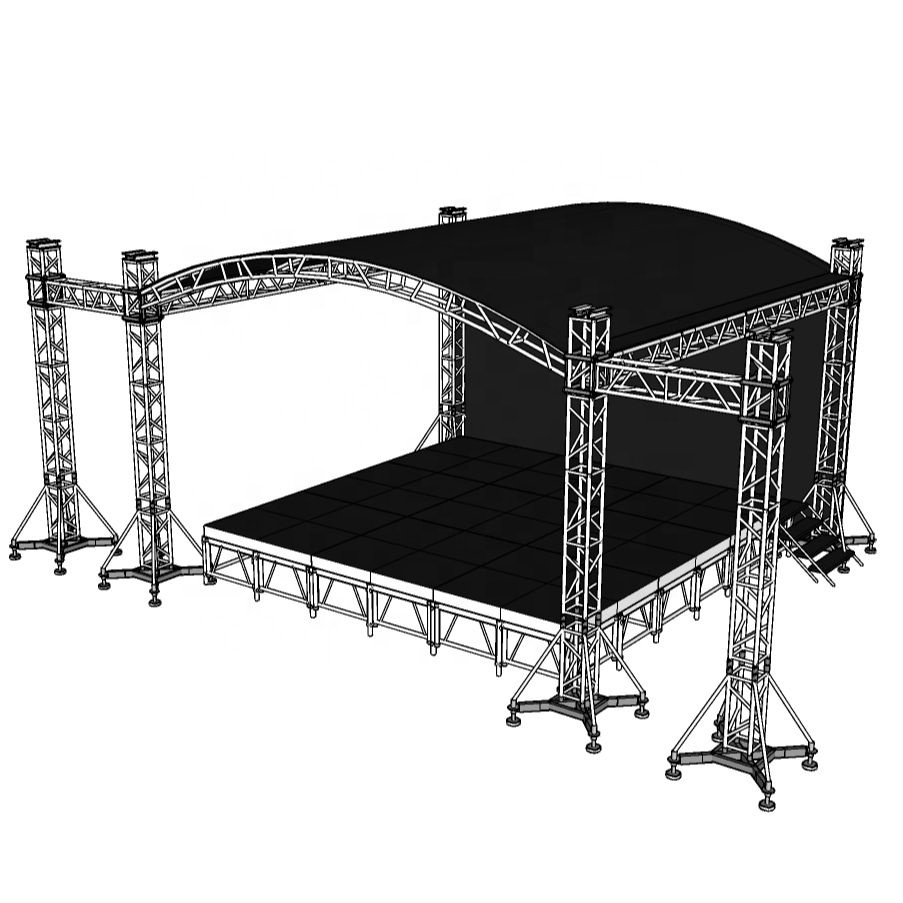

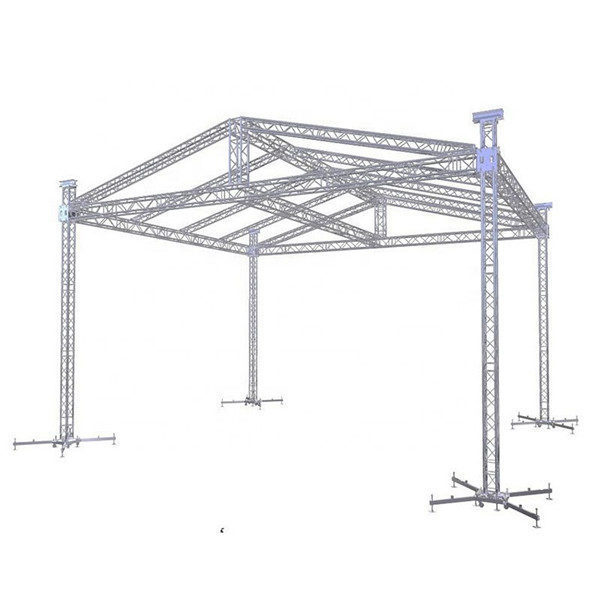

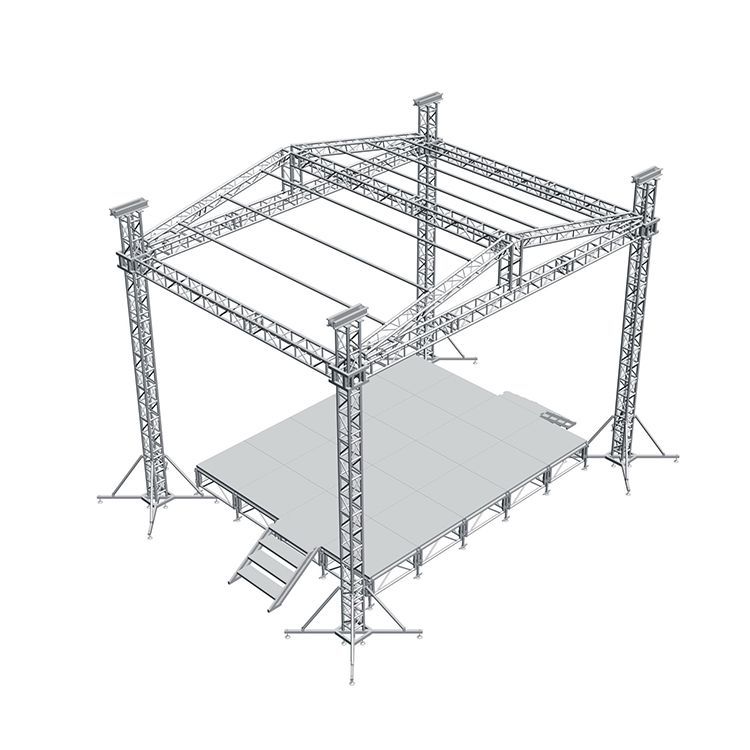

Aluminum Concert Stage Lighting Truss System
Product Specifications
| Material | Aluminum alloy |
| Unit length | 0.5m, 1m, 2m, 3m, 4m, 5m or customized |
| Color | Silver, black or customized |
| Truss section shape | Square or round |
| Shape | Square, Triangle, round or customized |
| Truss tube thickness | 1.5/2/3MM |
| Truss tube diameter | 20mm, 32mm, 50mm |
| Hardness | 16 degree |
| Application | Concert, Music, Performance, DJ Band, Event, Exhibition |
Technical Details
| Truss Material | Aluminum alloy 6082-T6 |
| Light duty truss | 200*200mm; 250*250mm |
| Medium duty truss | 290*290mm, 300*300mm; 350*350mm; 300*400mm; 400*400mm; 450*450mm; 400*600mm |
| Heavy duty truss | 520*760mm; 600*760mm; 600*1000mm |
| Main tube thickness | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| Vice tube thickness | 18*2mm; 20*2.5mm; 25*2.5mm |
| Brace tube thickness | 20*2mm; 25*2mm; 30*2mm |
| Length | 0.5m/1m/1.5m/2m...4m or custom size |
| Truss type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle truss |
| Color options | Silver or black, blue, green... |
| Usage | Concert, new product release, fashion show, booth stand construction |
| Delivery Time | 10 working days |
Applications
Our aluminum alloy stage truss system is a modular solution made of lightweight aluminum alloy tubes that can be easily assembled and disassembled. It is widely used in various events and applications:
- Concerts and festivals: Build stages for concerts, festivals, and outdoor events with configurable shapes and sizes
- Theatrical productions: Create sets, backdrops, and structures for plays, musicals, and operas
- Exhibitions and trade shows: Construct booths and displays for product showcases
- Corporate events: Build stages for product launches, conferences, and award ceremonies
- Sports events: Create structures for race lines, podiums, and scoreboards
Company Advantages
Why choose our company?
- TUV, SGS, CE Certified products
- 15 years experience in truss and stage systems
- 35,000 m² workshop with strong production capacity
- Professional engineering team for project solutions
- Own aluminum profile production line for quality control
- Strict QC process with installation testing
How do we ensure quality?
Our products have TUV/SGS/CE/ISO9001 certifications. We provide samples for quality verification before bulk orders.
Payment methods:
T/T, Western Union, Trade Assurance, L/C
Warranty:
1-year warranty covering non-artificial damage with free replacements
Customization:
Our technical team provides perfect solutions for customized designs
