290mm Square Aluminum Lighting Truss System For Events Display

Place of Origin JIANGSU
Brand Name SHIZHAN
Certification ISO CE TUV
Model Number SZ-TRUSS
Minimum Order Quantity 1 METER
Price USD 53
Packaging Details 290mm Square Aluminum Lighting Truss System For Events Display Sales is packed with bubble film and carton or as your requirement
Delivery Time 10-13 days
Payment Terms T/T,Western Union, D/P
Supply Ability 1000 METER PER WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 290mm Square Aluminum Lighting Truss System For Events Display Sales Application Exhibition,concert,event Etc.
Unit Length 0.5m,1m,2m,3m,4m,5m Or Customized Material Aluminum Alloy 6061-T6/6082-T6
Size 300*300mm,350*350mm,400*400mm,etc. Surface Electric Galvanized
Certificate CE/SGS/TUV/ISO9001/ROHS Feature Light Weight
OEM/ODM OEM
High Light

Square Aluminum Lighting Truss

,

290mm Square Aluminum Lighting Truss

,

Electric Galvanized Aluminum Truss Display

You can tick the products you need and communicate with us in the message board.
290mm*290mm
400mm*400mm
400mm*600mm
520mm*760mm
600mm*900mm
Leave a Message
290mm*290mm
Product Description
MANUFACTURER ALUMINUM CONCERT LIGHTING TRUSS DESIGN

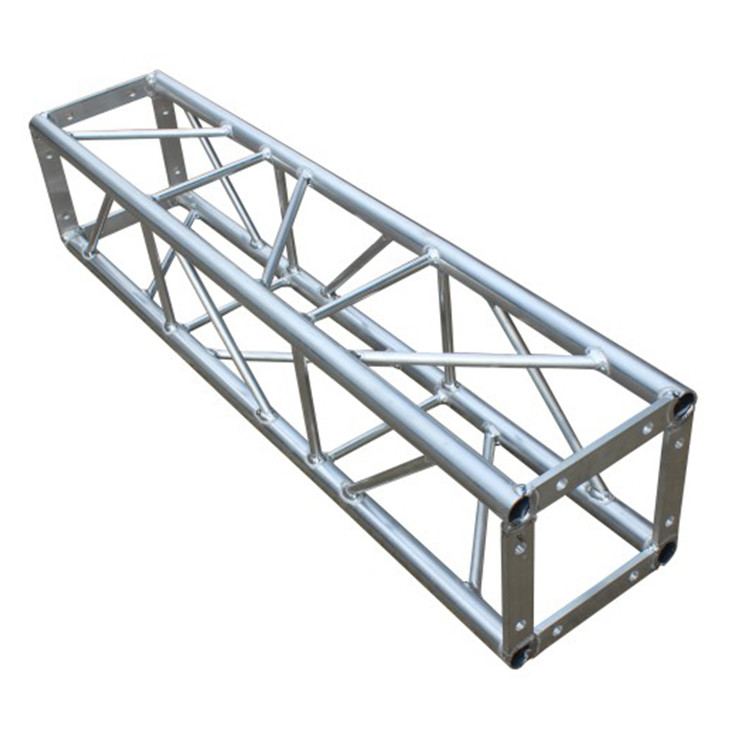

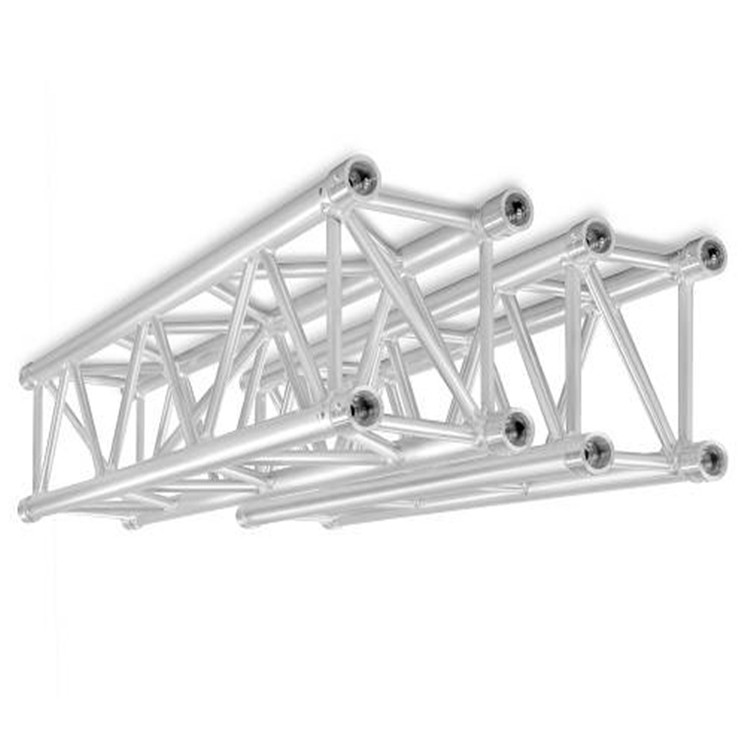

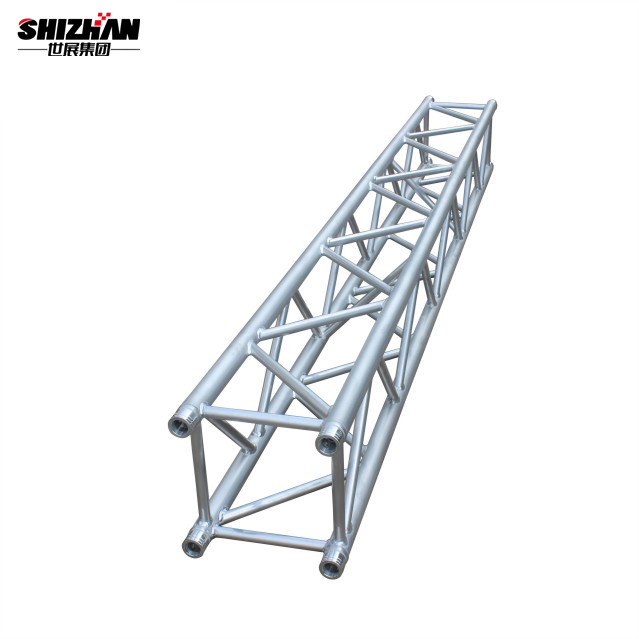

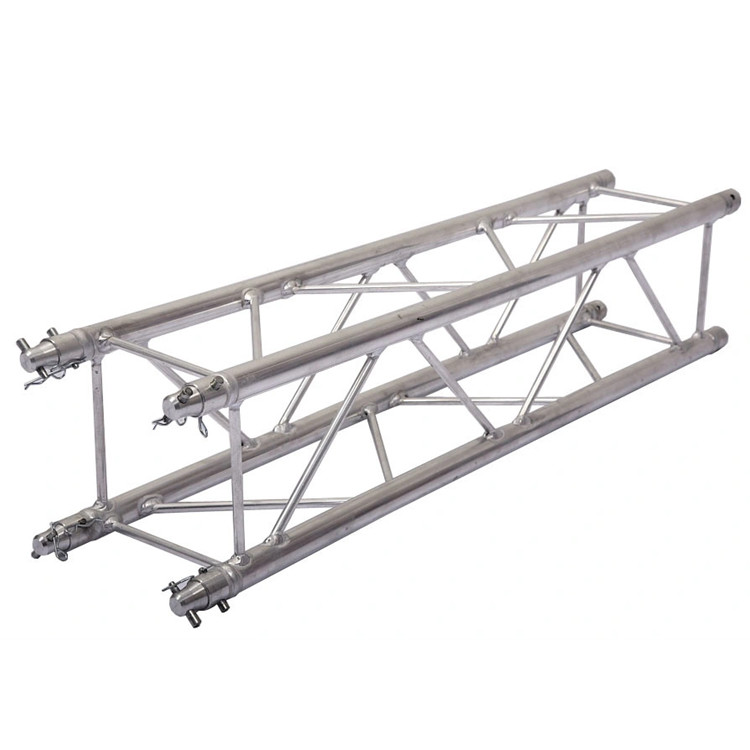

290mm Square Aluminum Lighting Truss System For Events Display Sales

- Standard lengths of Aluminum Spigot Square Truss are 16',14',12',10',8',6'and 5', other lengths can be provided upon request.
- All newly purchased 290mm Square Aluminum Spigot Truss can be upgraded to our patent.
- Slide the journal to create an arch.
- Includes standard hardware connections.
- Made of Aluminum alloy 6061-T6/6082-T6 sourced and produced in China.Aluminum spigot truss is light weight, good ductility, corrosion resistance and long service life.
- Maintain a longer-lasting smooth appearance than existing standard aluminum materials.
- Welders certified by AWS D1.2 are manufactured in China.
- Surface treatment:grinding, polishing, black powder coating.Other colors available upon request.
- Even with the use of good materials,aluminum spigot truss needs years of experience teachers with superb technology welding, better welding process,beautiful welding scars,making aluminum spigot truss not easy to tear, longer service life.

PRODUCT SPECIFICATION

Advantage:
1. 18 years professional production and technical experience
2. Biggest truss & stage factory in China
3. Product appearance is better than American biggest truss company
4. German TUV approved

Case:
1) 2020 Tokyo Olympic Games
2) 2019 Chinese National Day Celebration stage in BeiingTianan Men Square
3) US Trampoline Multiple Park
4) Chinese Super Star-Jay Zhou World Tour Concert Truss



Truss material

Aluminum alloy 6082-T6/6061-T6

Light duty truss

200*200(7.874inch);250*250mm(9.843inch)

Medium duty truss

290*290mm(11.42inch); 300*300mm(12inch);

350*350mm(13.78inch)

300*400mm(12*15.75inch) ; 400*400mm(15.75inch); 450*450mm(17.72inch); 400*600mm(15.75*23.62inch)

Heavy duty truss

520*760mm(20.47*29.92inch) ; 600*760mm(23.62*29.92inch); 600*1000mm(23.62*39.37inch)

Main tube thickness

30*2mm(1.18*0.079inch); 50*3mm(1.97*0.12inch); 50*4mm(1.97*0.16inch); 50*5mm(1.97*0.197inch)

Vice tube thickness

18*2mm(0.71*0.079inch); 20*2.5mm(0.79*0.0984inch); 25*2.5mm(0.984*0.0984inch)

Brace tube thickness

20*2mm(0.79*0.079inch); 25*2mm(0.984*0.079inch); 30*2mm(1.18*0.079inch)

Length

0.5m(1.64ft) /1m(3.28ft) /1.5m(4.92ft) /2m(6.56ft) /3m(9.84ft) /4m(13.12ft) or custom size

Truss type

Spigot or bolt

Truss shape

Ladder truss, triangular truss, square truss, arch truss, circle truss

Color

Silver or black, blue, green..

Usage

Concert, new product release, fashion show, booth stand construction

Delivery time

15 working days















































If you want to know a lot about our products,welcomr to contact us!

You can tell us the length_,the width_,and the height_.

We can design diverse shapes to hang acoustics, loud speaker, video, lighting, etc. Widely used for wedding, exhibition, show, concert, celebrations, ceremony, conference, performance, meeting, party, activities and so on.

We have a professional technical team to serve you at any time.

290mm Square Aluminum Lighting Truss System For Events Display 0

290mm Square Aluminum Lighting Truss System For Events Display 1

FAQ

1. Are you a factory or trading company?

We are a factory with more than 15 years' experience.

2. How do i know your quality? Do you support sample order?
We have TUV and CE Certificate.
Welcome visit our factory to know more about us.
Sample order is acceptable.

3. What’s your payment term?
T/T,Western Union,Trade Assurance, L/C, Credit Card.

4. What’s your product warranty time?
1 year.

5. Can you do customized design?
Yes, our professional Technical team will offer you the perfect solutions for your projects.
