Event Light Weight Alloy Easy Aluminum Truss System With Lift
| Place of Origin | JIANGSU |
|---|---|
| Brand Name | SHIZHAN |
| Certification | ISO CE TUV |
| Model Number | SZ-TRUSS |
| Minimum Order Quantity | 1000 METER |
| Price | USD 53 |
| Packaging Details | Spigot Truss Frame Section Aluminum Portable Spigot Truss Light is packed with bubble film and carton or as your requirements. |
| Delivery Time | 5-8 DAYS |
| Payment Terms | T/T, Western Union, D/P |
| Supply Ability | 1000 METER PER WEEK |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Aluminium Alloy Event Concert Stage Lighting Spigot Truss Large Outdoor Roof Truss Stage For Outdoor Activity | Application | Exhibition,concert,event Etc |
|---|---|---|---|
| Unit Length | 0.5m,1m,2m,3m,4m,5m Or Customerized | OEM/ODM | OEM |
| Material | Aluminum Alloy 6061-T6/6082-T6 | Size | 300*300mm,350*350mm,400x400mm,etc |
| Surface | Electric Galvanized | Certificate | CE/SGS/TUV/ISO9001/ROHS |
| Feature | Light Weight | ||
| High Light | Lightweight Aluminum Truss System,Aluminum Truss System With Lift,Event Lightweight Lighting Truss |
||
You can tick the products you need and communicate with us in the message board.
| 290mm*290mm | |
|---|---|
| 400mm*400mm | |
| 400mm*600mm | |
| 520mm*760mm | |
| 600mm*900mm |
Product Description

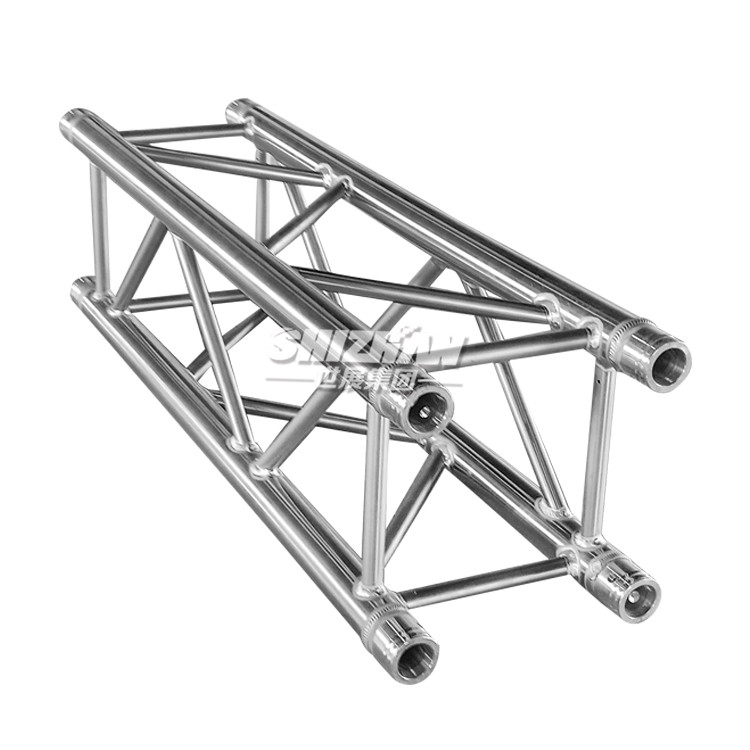

Light Weight Alloy Easy Truss System With Lift Aluminum Truss System Event
We are one of the manufacturers and desiger of an extensive assortment of Aluminum Truss which are made available in different specifications to meet varied client demands. This Truss used in Sound, Light, Exhibition, Stage Shows etc.
Our Truss has all kinds Size so that it will Sustain many kinds Load. Our Truss is made up of 6061-T6 and 6082-T6 Aluminium alloy Material. Aluminum Truss use for events and DJ parties.
- Standard lengths of Aluminum Spigot Square Truss are 16', 14', 12', 10', 8', 6'and 5', other lengths can be
provided upon request.
- All newly purchased 290x290mm Square Aluminum Spigot Truss can be upgraded to our patent.
- Slide the journal to create an arch.
- Includes standard hardware connections.
truss display for s
Advantage:
1. 18 years professional production and technical experience
2. Biggest truss & stage factory in China
3. Product appearance is better than American biggest truss company
4. German TUV approved
Case:
1) 2020 Tokyo Olympic Games
2) 2019 Chinese National Day Celebration stage in Beiing Tian'an Men Square
3) US Trampoline Multiple Park
4) Chinese Super Star - Jay Zhou World Tour Concert Truss
| Truss Material | Aluminum alloy 6082-T6 |
| Light duty truss | 200*200mm(7.874inch); 250*250mm(9.843inch) |
| Medium duty truss |
290*290mm(11.42inch); 300*300mm(12inch); 350*350mm(13.78inch) 300*400mm(12*15.75inch) ; 400*400mm(15.75inch); 450*450mm(17.72inch); 400*600mm(15.75*23.62inch) |
| Heavy duty truss | 520*760mm(20.47*29.92inch) ; 600*760mm(23.62*29.92inch); 600*1000mm(23.62*39.37inch) |
| Main tube thickness | 30*2mm(1.18*0.079inch); 50*3mm(1.97*0.12inch); 50*4mm(1.97*0.16inch); 50*5mm(1.97*0.197inch) |
| Vice tube thickness | 18*2mm(0.71*0.079inch); 20*2.5mm(0.79*0.0984inch); 25*2.5mm(0.984*0.0984inch) |
| Brace tube thickness | 20*2mm(0.79*0.079inch); 25*2mm(0.984*0.079inch); 30*2mm(1.18*0.079inch) |
| Length | 0.5m(1.64ft) /1m(3.28ft) /1.5m(4.92ft) /2m(6.56ft) /3m(9.84ft) /4m(13.12ft) or custom size |
| Truss type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle truss |
| Color | Silver or black, blue, green.. |
| Usage | Concert, new product release, fashion show, booth stand construction |
| Delivery Time | 15 working days |
The Heavy Aluminium Truss series are the perfect designed truss series to make long spans with a high load bearing capacity.
For indoor rig and spans the Heavy Duty truss are by far the best solution available in the truss market and for in- and outdoor use the Aluminum Plate Truss offers all benefits of a massive load capacity and perfect design allowing to be used in Ground Supports and the main used Roof Systems.
-Maintain a longer-lasting smooth appearance than existing standard aluminum materials.
-Welders certified by AWS D1.2 are manufactured in China.
-Surface treatment: grinding, polishing, black powder coating. Other colors available upon request.
-Even with the use of good materials, aluminum spigot truss needs years of experience teachers with superb technology welding, better welding process, beautiful welding scars, making aluminum spigot truss not easy to tear, longer service life.
Dear Friend, Tell us the width ___, dipth_____, height______ of the truss system you need, we will quote a price to you soon. Thanks
1. Are you a factory or trading company?
We are a factory with more than 15 years' experience.
2. How do i know your quality? Do you support sample order?
We have TUV and CE Certificate
Welcome visit our factory to know more about us.
Sample order is acceptable
3. What’s your payment term?
T/T,Western Union,Trade Assurance, L/C, Credit Card.
4. What’s your product warranty time?
1 year.
5. Can you do customized design?
Yes, our professional Technical team will offer you the perfect solutions for your projects.
Dear Friend, welcome send your INQUIRY here, we will offer best
