Portable Spigot Black Lighting Truss Section Aluminum Stage Truss System
| Place of Origin | JIANGSU |
|---|---|
| Brand Name | SHIZHAN |
| Certification | ISO CE TUV |
| Model Number | SZ-TRUSS |
| Minimum Order Quantity | 1000 METER |
| Price | USD 53 |
| Packaging Details | Portable Spigot Lighted Square Truss Section Aluminum Spigot Truss is packed with bubble film and carton or as your requirements. |
| Delivery Time | 5-8 DAYS |
| Payment Terms | T/T, Western Union, D/P |
| Supply Ability | 1000 METER PER WEEK |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details

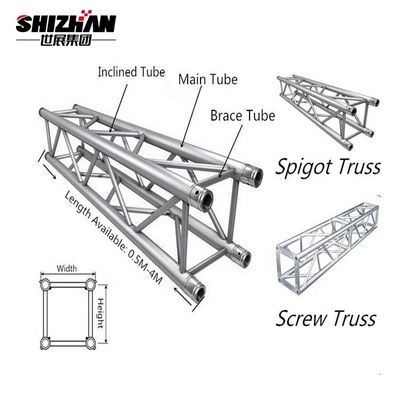

| Name | Portable Spigot Lighted Square Truss Section Aluminum Spigot Truss | Material | Aluminum Alloy 6061-T6/6082-T6 |
|---|---|---|---|
| Application | Exhibition,concert,event Etc | Size | 300*300mm,350*350mm,400x400mm,etc |
| Color | Silver,black Or As Your Requirements | Surface | Electric Galvanized |
| Unit Length | 0.5m,1m,2m,3m,4m,5m Or Customerized | Certificate | CE/SGS/TUV/ISO9001/ROHS |
| OEM/ODM | OEM | Feature | Light Weight |
| Highlight | Spigot Black Lighting Truss,6061-T6 Aluminum Stage Truss System,Spigot Lighting Truss Section |
||
You can tick the products you need and communicate with us in the message board.
| 290mm*290mm | |
|---|---|
| 400mm*400mm | |
| 400mm*600mm | |
| 520mm*760mm | |
| 600mm-900mm |
Product Description
Portable Spigot Black Lighting Truss Section Aluminum Stage Truss System
Jiangsu Shizhan Group,our company is Manufacture in China.It main produces Truss,Stage,Scaffolding,
Barrier and so on.Of course,we can customize according to your requirements.On the price,we are competitive.

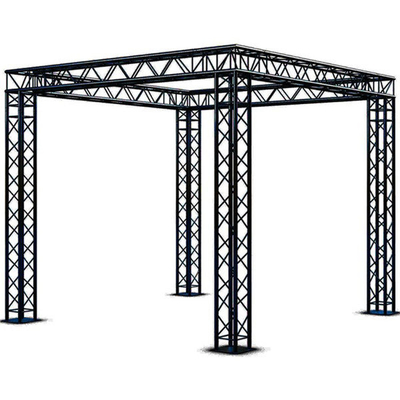

The black Spigot Truss is the same as the conventional Spigot truss. Their difference is mainly to meet the needs of customers. Its surface is covered with black spray. Conventional truss frames, concerts or performances can be built with it. Customers can give priority to black trusses when pursuing more beautiful trusses.
Aluminum spigot truss has been more and more used in various activities, and the truss de aluminio is quick to disassemble and assemble, and it is convenient to transport. The aluminum spigot truss can adapt to the bending moment and the wide range of tension and compression performed on it inside the truss structure. And many other operations, saving a lot of manpower expenditure.
truss display for s
| Truss Material | Aluminum alloy 6082-T6 |
| Light duty truss | 200*200mm(7.874inch); 250*250mm(9.843inch) |
| Medium duty truss |
290*290mm(11.42inch); 300*300mm(12inch); 350*350mm(13.78inch) 300*400mm(12*15.75inch) ; 400*400mm(15.75inch); 450*450mm(17.72inch); 400*600mm(15.75*23.62inch) |
| Heavy duty truss | 520*760mm(20.47*29.92inch) ; 600*760mm(23.62*29.92inch); 600*1000mm(23.62*39.37inch) |
| Main tube thickness | 30*2mm(1.18*0.079inch); 50*3mm(1.97*0.12inch); 50*4mm(1.97*0.16inch); 50*5mm(1.97*0.197inch) |
| Vice tube thickness | 18*2mm(0.71*0.079inch); 20*2.5mm(0.79*0.0984inch); 25*2.5mm(0.984*0.0984inch) |
| Brace tube thickness | 20*2mm(0.79*0.079inch); 25*2mm(0.984*0.079inch); 30*2mm(1.18*0.079inch) |
| Length | 0.5m(1.64ft) /1m(3.28ft) /1.5m(4.92ft) /2m(6.56ft) /3m(9.84ft) /4m(13.12ft) or custom size |
| Truss type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle truss |
| Color | Silver or black, blue, green.. |

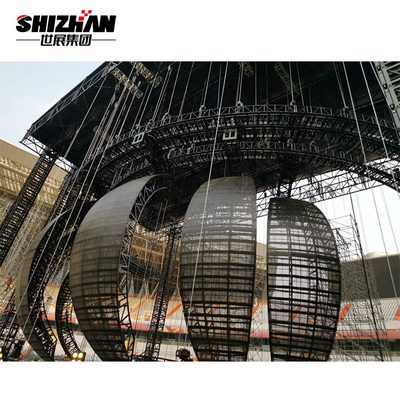

| Usage | Concert, new product release, fashion show, booth stand construction |
| Delivery Time | 15 working days |
Dear Friend, Tell us the width ___, dipth_____, height______ of the truss system you need, we will quote a price to you soon. Thanks
1. Are you a factory or trading company?
We are a factory with more than 15 years' experience.
2. How do i know your quality? Do you support sample order?
We have TUV and CE Certificate
Welcome visit our factory to know more about us.
Sample order is acceptable
3. What’s your payment term?
T/T,Western Union,Trade Assurance, L/C, Credit Card.
4. What’s your product warranty time?
1 year.
5. Can you do customized design?
Yes, our professional Technical team will offer you the perfect solutions for your projects.
Dear Friend, welcome send your INQUIRY here, we will offer best price to you soon.
