Aluminum DJ Lighting Truss

ROOF :8*6M

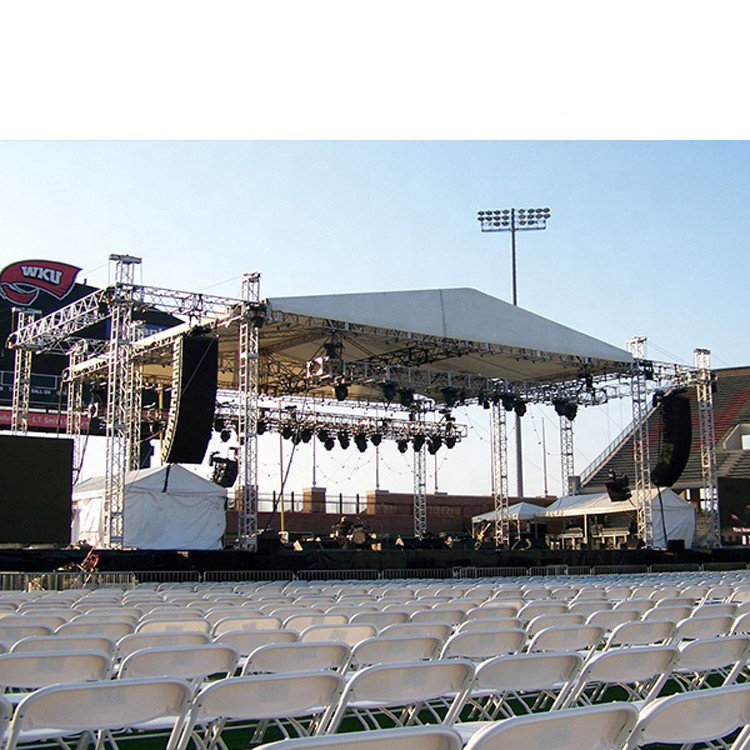

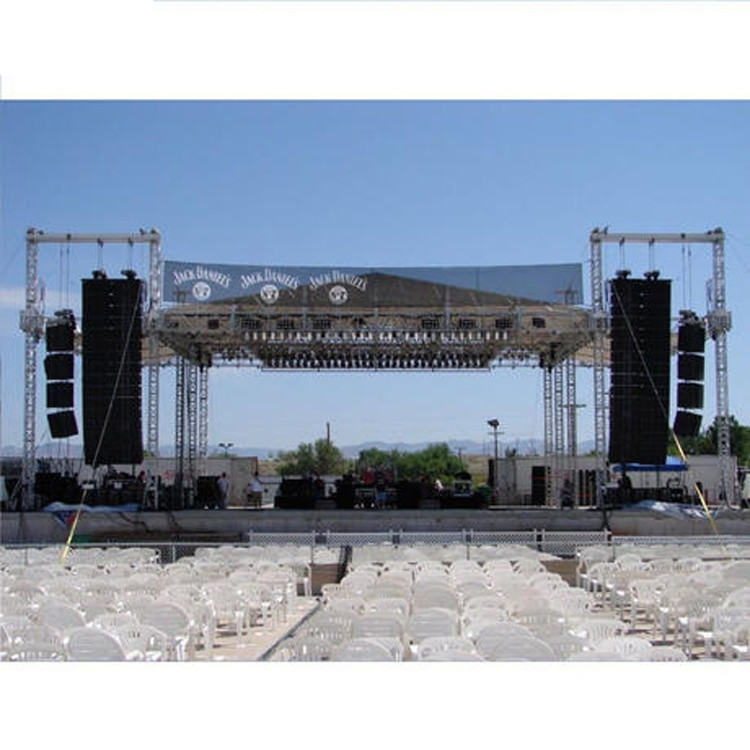

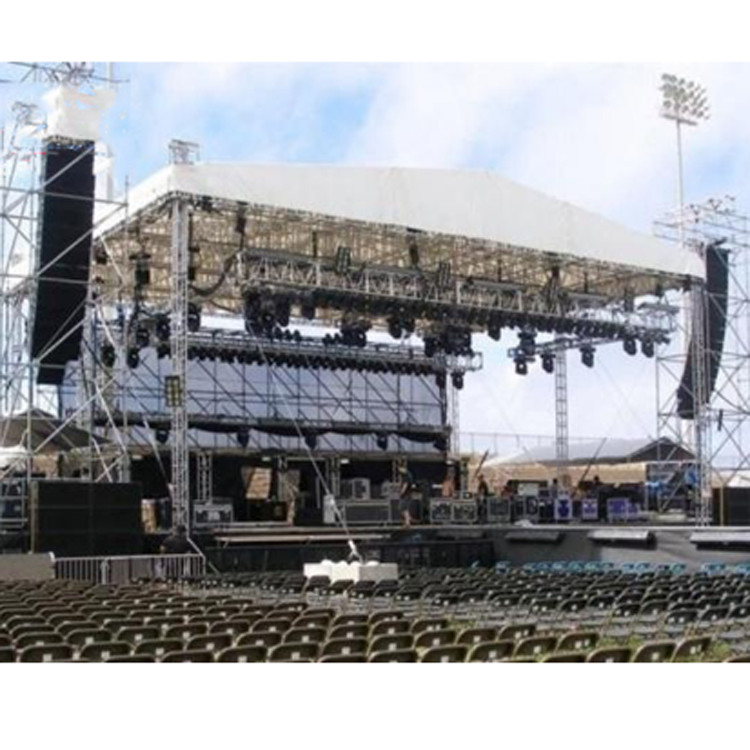

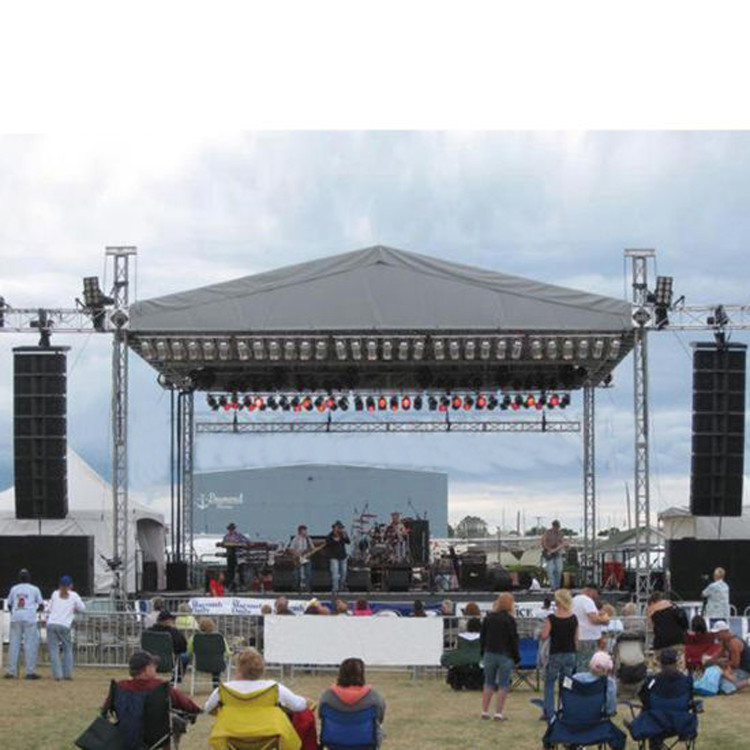

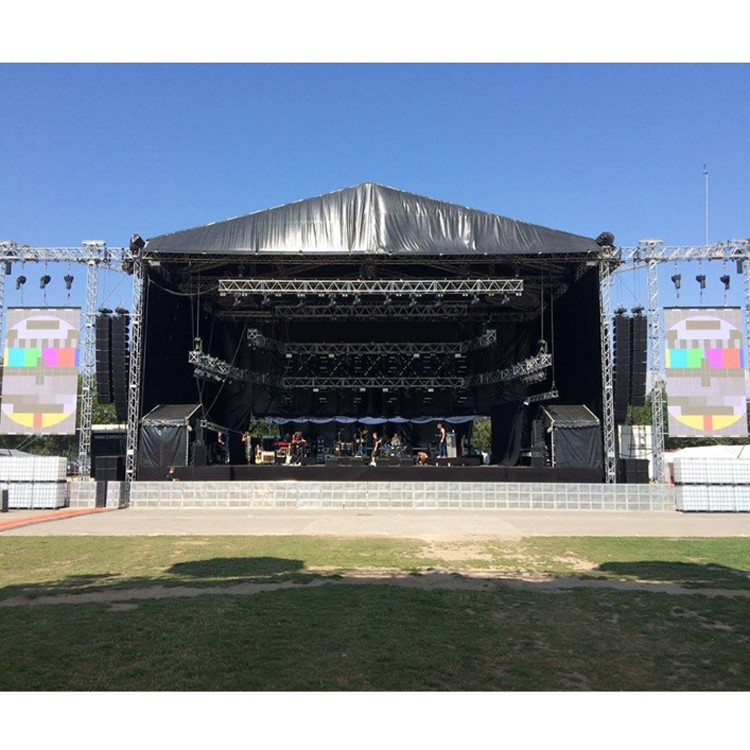

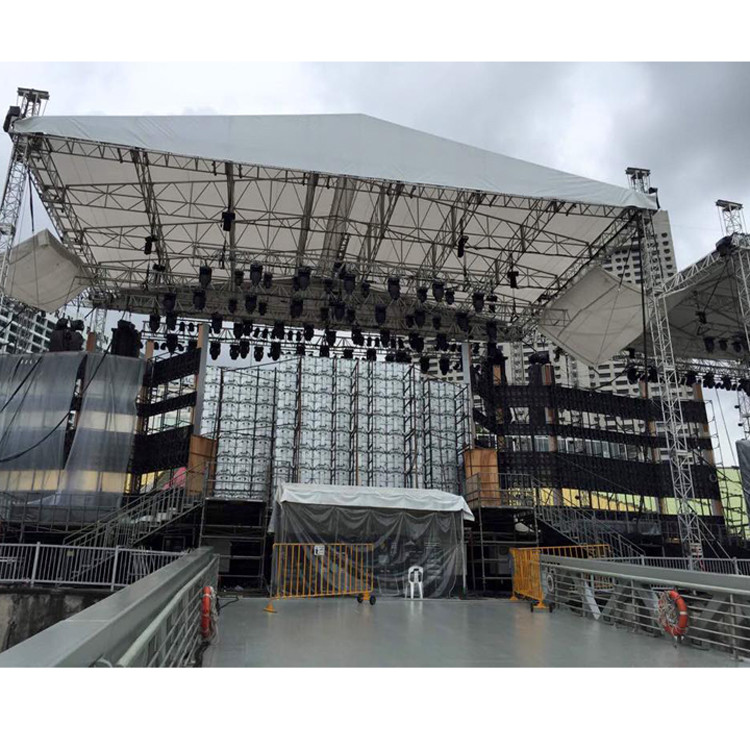

roof design has become the standard in aluminum truss temporary roof structures throughout the

world. Roof 2 system comes in three different size variations covering small to big size events.

It is a very popular roof structure thanks to its variability, strength and decent size measures. The

main grid is assembled on the ground and then lifted up thanks to the employment of Tower 1

elevation systems.

The main rectangular grid of Roof 2 is made of FT44 trusses while the front and rear rafters come from

FT34 truss line and the inside rafters are made by FT33 truss segments. The gable of the roof is created

by the FT34 rafters and specifically designed corners for strong and secure roof structure attachment.

The inside FT33 rafters are connected to the main grid and top beam through clamps. The rafters are

spaced 2 m apart from each other in order to create a sufficient support for the top canopy placement

eliminating water pockets.

Roof 2 for stage size 8 x 6 m (26 ft x 19.5 ft) maybe smaller in size but its loading characteristics are

quite high. Front and rear main beams of the grid can carry load up to 150 kg/m (101 lb/ft) and at

the same tim the side truss beams can handle imposed load of max. 100 kg/m (67 lb/ft). In total the

max. loading capacity of the roof comes up  to 3500 kg (7716 lb). he operational wind limit for using

the roof system with the side canopies on all three sides is 20 m/s (45 mph).

1: Why should i choose your company instead of other suppliers?

1) TUV, SGS, CE Certified.

2) 15 years Experience in truss, stage, barrier and scaffolding.

3) 35000 m² WORKSHOP Offers good production capacity which can make sure to delivery orders On time.

4) Professional engineer team offer you the Perfect Solutions for your project.

5) Have our own Aluminum Profile Production line which can control the good quality of material.

6) Professional & strict QC team which can make sure all products in good condition before delivery.

7) Process and Final Inspection,strict product precision control ,installation test before delivery for each order.

2: How do i know your quality? Do you support sample order?

Our products has obtained TUV/SGS/CE/ISO9001 Certificates in the international market,which proves that our products’s Excellent quality.

We can also offer samples for customer to do the quality checking before placing the batch order.

3: Which kinds of payment your company can accept?

T/T,Western Union,Trade Assurance, L/C.

4: What is your products warranty time?

Usually our products warranty is one year and during the warranty time any damage if not by artificial, we will send new one for free.

5:Can you do customized design?

Yes, our professional Technical team will offer you the perfect solutions for your projects.
