Aluminum Frame Event Concert DJ Lighting Truss System Free Design

Place of Origin JIANGSU
Brand Name SHIZHAN
Certification ISO CE TUV
Model Number SZ-TRUSS
Minimum Order Quantity 1000 METER
Price USD 53
Packaging Details Spigot Truss Frame Section Aluminum Portable Spigot Truss Light is packed with bubble film and carton or as your requirements.
Delivery Time 5-8 DAYS
Payment Terms T/T, Western Union, D/P
Supply Ability 1000 METER PER WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Customized Outdoor Led Screen Aluminum Truss Display Lighting Event Bolt Spigot Stage Truss Frame Application Exhibition,concert,event Etc
Unit Length 0.5m,1m,2m,3m,4m,5m Or Customerized OEM/ODM OEM
Material Aluminum Alloy 6061-T6/6082-T6 Size 300*300mm,350*350mm,400x400mm,etc
Surface Electric Galvanized Certificate CE/SGS/TUV/ISO9001/ROHS
Feature Light Weight
High Light

Concert DJ Lighting Truss System


Aluminum DJ Lighting Truss System


Aluminum Frame Concert Truss System

You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
Free Design Aluminum Frame DJ Truss Lighting Concert Truss System Event


The Heavy Aluminium Truss series are the perfect designed truss series to make long spans with a high load bearing capacity.

For indoor rig and spans the Heavy Duty truss are by far the best solution available in the truss market and for in- and outdoor use the Aluminum Plate Truss offers all benefits of a massive load capacity and perfect design allowing to be used in Ground Supports and the main used Roof Systems.

- Maintain a longer-lasting smooth appearance than existing standard aluminum materials.
- Welders certified by AWS D1.2 are manufactured in China.
- Surface treatment: grinding, polishing, black powder coating. Other colors available upon request.

- Even with the use of good materials, aluminum spigot truss needs years of experience teachers with superb technology welding, better welding process, beautiful welding scars, making aluminum spigot truss not easy to tear, longer service life.



We are one of the manufacturers and desiger of an extensive assortment of Aluminum Truss which are made available in different specifications to meet varied client demands. This Truss used in Sound, Light, Exhibition, Stage Shows etc.
Our Truss has all kinds Size so that it will Sustain many kinds Load. Our Truss is made up of 6061-T6 and 6082-T6 Aluminium alloy Material. Aluminum Truss use for events and DJ parties.



- Standard lengths of Aluminum Spigot Square Truss are 16', 14', 12', 10', 8', 6'and 5', other lengths can be

provided upon request.
- All newly purchased 290x290mm Square Aluminum Spigot Truss can be upgraded to our patent.
- Slide the journal to create an arch.
- Includes standard hardware connections.



02 Specification truss display for s

1. 18 years professional production and technical experience
2. Biggest truss & stage factory in China
3. Product appearance is better than American biggest truss company
4. German TUV approved

1) 2020 Tokyo Olympic Games
2) 2019 Chinese National Day Celebration stage in Beiing Tian'an Men Square
3) US Trampoline Multiple Park
4) Chinese Super Star - Jay Zhou World Tour Concert Truss


Truss Material Aluminum alloy 6082-T6
Light duty truss 200*200mm(7.874inch); 250*250mm(9.843inch)
Medium duty truss

290*290mm(11.42inch); 300*300mm(12inch); 350*350mm(13.78inch)

300*400mm(12*15.75inch) ; 400*400mm(15.75inch); 450*450mm(17.72inch); 400*600mm(15.75*23.62inch)

Heavy duty truss 520*760mm(20.47*29.92inch) ; 600*760mm(23.62*29.92inch); 600*1000mm(23.62*39.37inch)
Main tube thickness 30*2mm(1.18*0.079inch); 50*3mm(1.97*0.12inch); 50*4mm(1.97*0.16inch); 50*5mm(1.97*0.197inch)
Vice tube thickness 18*2mm(0.71*0.079inch); 20*2.5mm(0.79*0.0984inch); 25*2.5mm(0.984*0.0984inch)
Brace tube thickness 20*2mm(0.79*0.079inch); 25*2mm(0.984*0.079inch); 30*2mm(1.18*0.079inch)
Length 0.5m(1.64ft) /1m(3.28ft) /1.5m(4.92ft) /2m(6.56ft) /3m(9.84ft) /4m(13.12ft) or custom size
Truss type Spigot or bolt
Truss Shape Ladder truss, triangular truss, square truss, arch truss, circle truss
Color Silver or black, blue, green..
Usage Concert, new product release, fashion show, booth stand construction
Delivery Time 15 working days

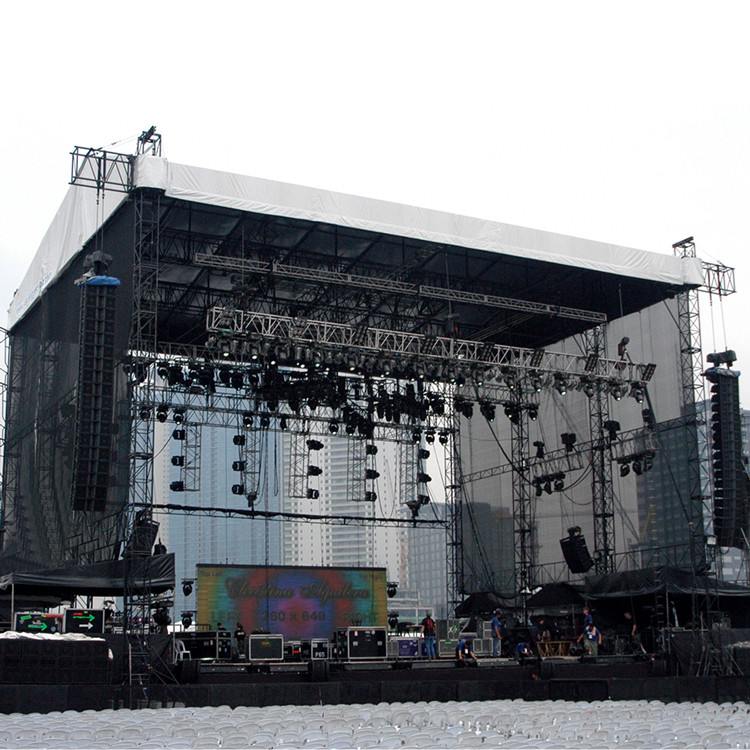

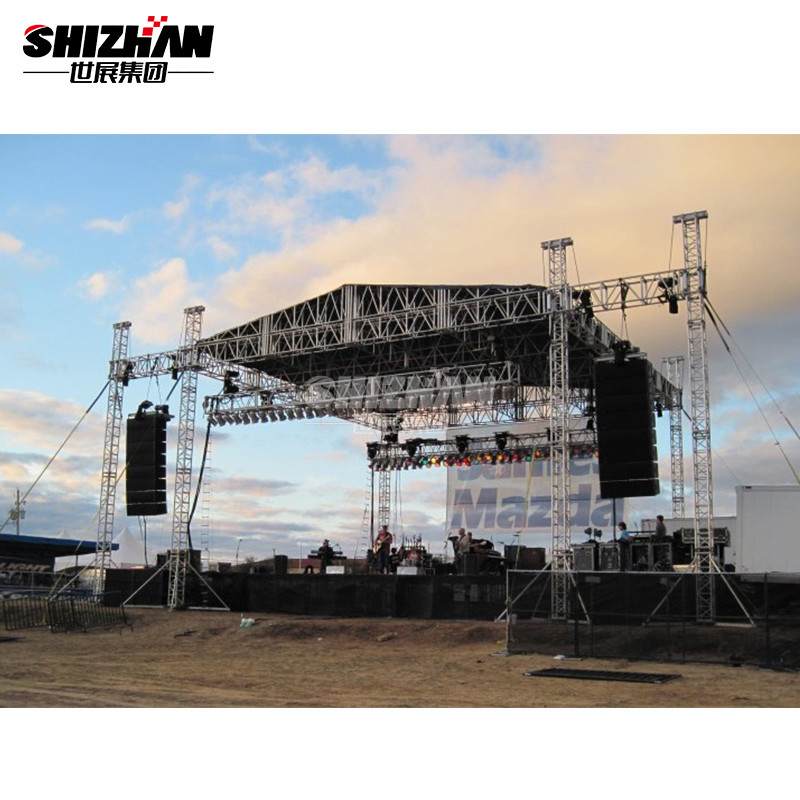

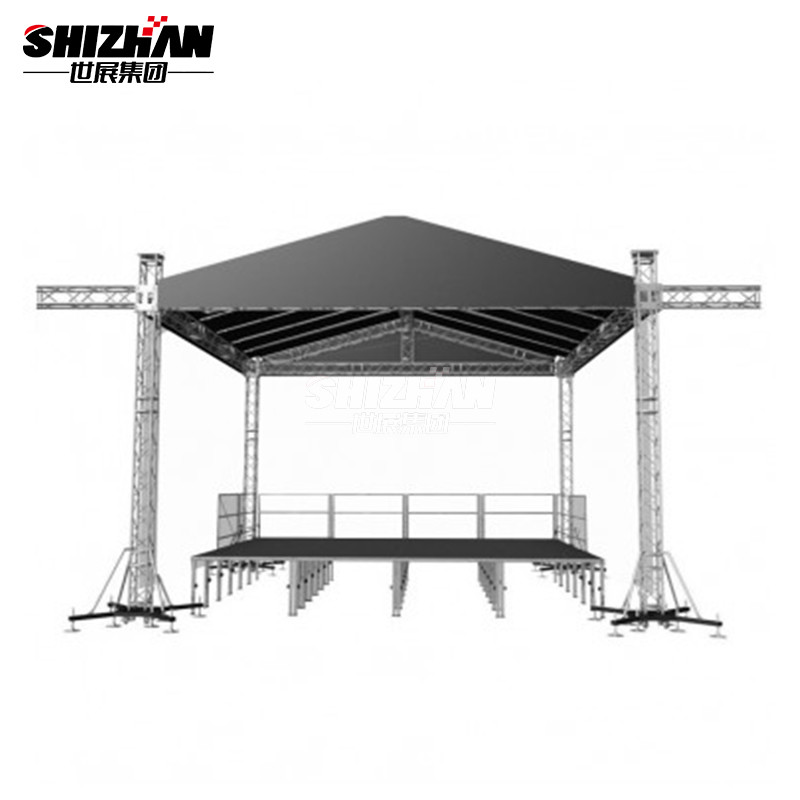

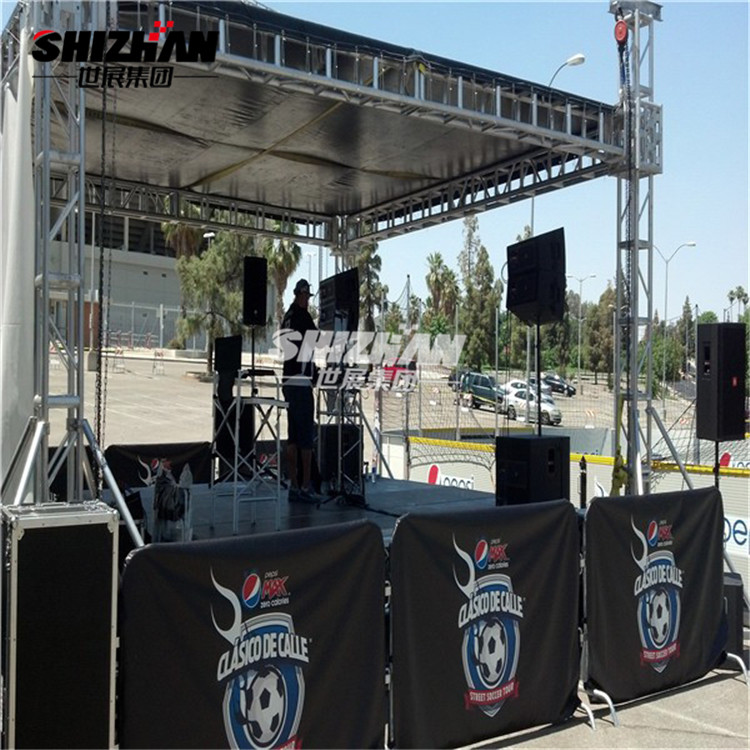

Aluminum Frame Event Concert DJ Lighting Truss System Free Design 1Aluminum Frame Event Concert DJ Lighting Truss System Free Design 2Aluminum Frame Event Concert DJ Lighting Truss System Free Design 3Aluminum Frame Event Concert DJ Lighting Truss System Free Design 4


Dear Friend, Tell us the width ___, dipth_____, height______ of the truss system you need, we will quote a price to you soon. Thanks

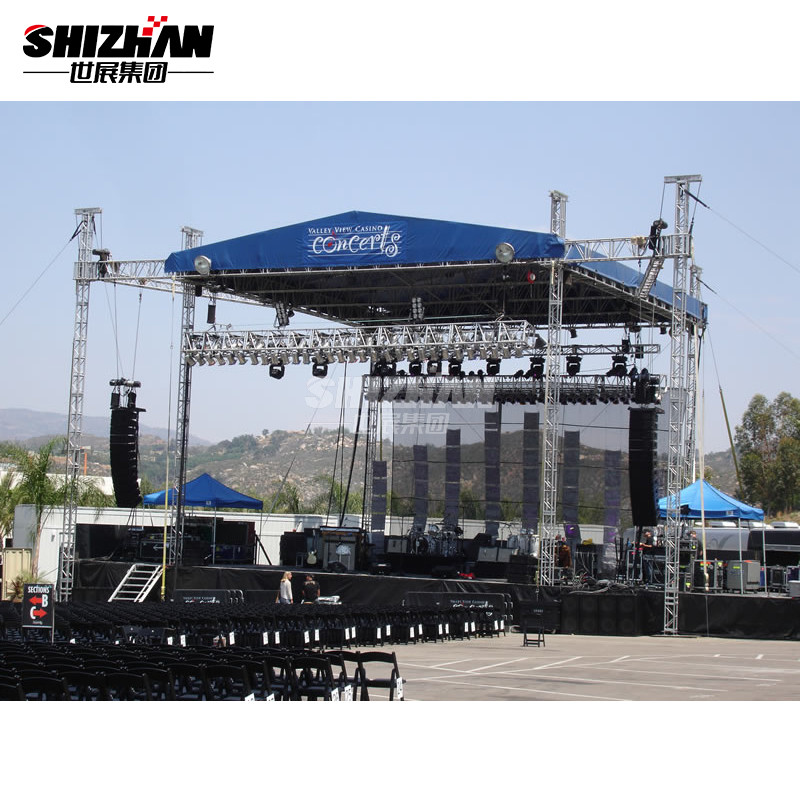

Aluminum Frame Event Concert DJ Lighting Truss System Free Design 5

10 FAQ

1. Are you a factory or trading company?

We are a factory with more than 15 years' experience.


2. How do i know your quality? Do you support sample order?

We have TUV and CE Certificate

Welcome visit our factory to know more about us.

Sample order is acceptable


3. Whats your payment term?

T/T,Western Union,Trade Assurance, L/C, Credit Card.


4. Whats your product warranty time?

1 year.


5. Can you do customized design?

Yes, our professional Technical team will offer you the perfect solutions for your projects.




Dear Friend, welcome send your INQUIRY here, we will offer best
